V40 Rotary Vane Pump

Ebsray® V Series Model V40 Rotary Vane Pumps have been designed and precision built for efficient transfer of a variety of liquids over a wide range of viscosities with lubricating or non-lubricating characteristics. Built for versatility, V40 Rotary Vane Pumps feature numerous mounting options, including up to eight different porting and drive configurations. These vane pumps include 4-in ports.

V40 Rotary Vane Pumps are manufactured under strict guidelines and procedures and are run tested prior to shipment in order to ensure performance in accordance with pump specifications. These high standards allow V40 Rotary Vane Pumps to provide a long and trouble-free service life.















Features and Benefits

  • Quiet operation
  • High overall efficiency
  • Low maintenance – long life
  • Internal wearing parts replaceable without moving pump from piping
  • Vanes positively actuated and self compensating for wear
  • Self-priming
  • Excellent vapor handling
  • Integral adjustable bypass valve
  • Variable porting options and drive configurations
    • Designed with three ports to provide either two suction or two discharge options allowing 90° or 180° degree configuration – up to eight porting configurations available

Applications

  • Fuel oils
  • Transformer oils
  • Lube oils
  • Solvents
  • Distillate
  • Chemicals
  • Petrol
  • Vegetable oils
  • Kerosene
  • Aviation fuels
  • LPG
  • Oil additives

Performance Data

PERFORMANCE DATA
Max. Flows 2,000 L/min (528 gpm)
Max. Differential Pressure 8.5 bar (123 psi)
Viscosity Range 0.5 to 10,000 cSt
Temperature 0°C to 100°C (32°F to 212°F)



Technical Data

WEIGHT
Pump 202 kg depending on construction type
PART MATERIAL
Body Ductile Iron
Rotors Cast Iron
Vanes Synthetic
Liner Cast Iron
Shaft Stainless Steel
Bearing Housing Ductile Iron
PORTING
Inlet DN100 (4″) ANSI CL 300 flange
Discharge DN100 (4″) ANSI CL 300 flange

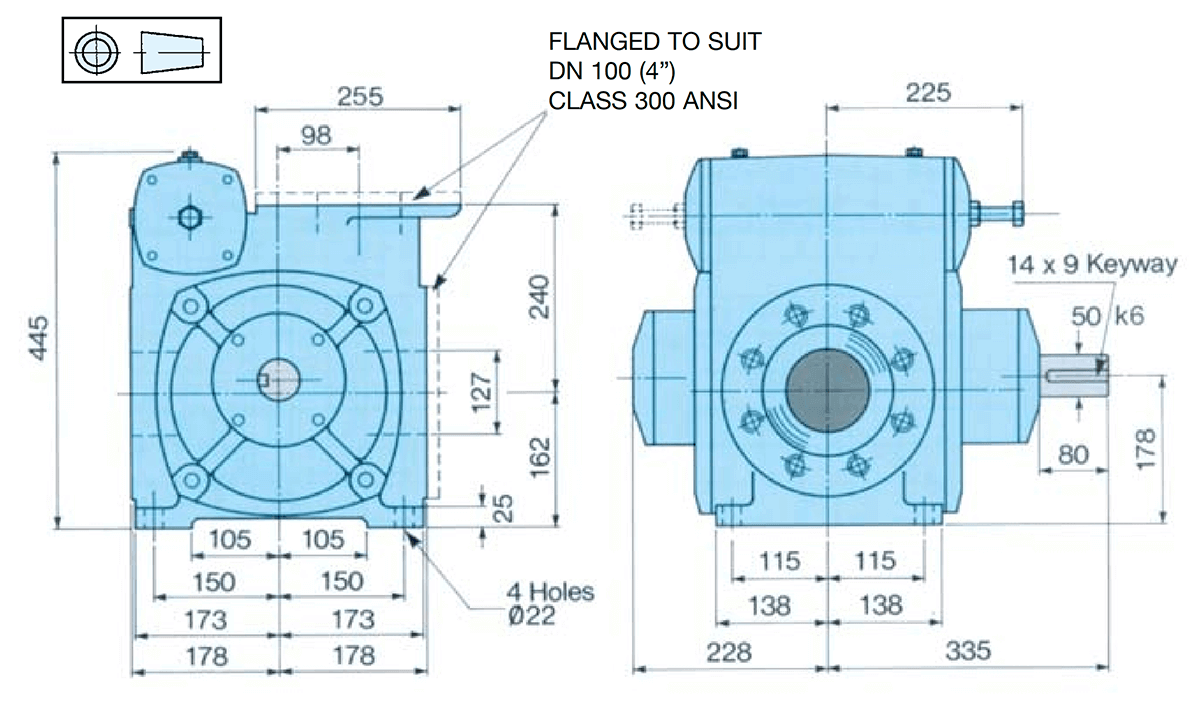

v-series-model-v40_pdf



Enquire about this product

  • This field is for validation purposes and should be left unchanged.

All pictures shown are for illustration purpose only. Actual product may vary. All specifications are subject to change without notice.
