V30 Rotary Vane Pump
Ebsray® V Series Model V30 Rotary Vane Pumps have been designed and precision built for efficient transfer of a variety of liquids over a wide range of viscosities with lubricating or non-lubricating characteristics. Built for versatility, V30 Rotary Vane Pumps feature a port design that provides numerous mounting options, including up to two different porting and drive configurations. These vane pumps include 3-in ports.
V30 Rotary Vane Pumps are manufactured under strict guidelines and procedures and are run tested prior to shipment in order to ensure performance in accordance with pump specifications. These high standards allow V30 Rotary Vane Pumps to provide a long and trouble-free service life.
Features and Benefits
- High overall efficiency
- Low maintenance and long service life
- Excellent self-priming and air-handling characteristics
- Internal wearing parts replaceable without removing pump from piping
- Direct coupling to synchronous speed electric motors, speed variators, PTOs or engine driven
- Rotation to suit clockwise and counterclockwise flow
- Variable mounting options
- Lightweight, robust and compact
- Positively actuated synthetic vanes; self compensate for wear
- Integral adjustable bypass valve
- Reversible wear plates
- Double-ended shaft option
- Standard pressure retaining components
- CE marked, ATEX compliant for specific applications
- Side outlet 180° offset from inlet
Applications
- Fuel oils
- Transformer oils
- Lube oils
- Solvents
- Distillate
- Chemicals
- Petrol
- Vegetable oils
- Kerosene
- LPG
Performance Data
| PERFORMANCE DATA (50 HZ) | |
|---|---|
| Max. Flows | 1,000 L/min (264 gpm) |
| Max. Differential Pressures | 11 bar (160 psi) |
| Viscosity Range | 0.5 to 10,000 cSt |
| Temperature | 0°C to 100°C (32°F to 212°F) |
Technical Data
| WEIGHT | |
|---|---|
| Pump | 56 to 81 kg depending on construction type |
| BODY | MATERIAL |
|---|---|
| Body | Aluminum or Cast Iron |
| Rotors | Cast Iron |
| Vanes | Synthetic |
| Liner | Cast Iron |
| Shaft | Stainless Steel |
| Bearing Housing | Aluminum or Cast Iron |

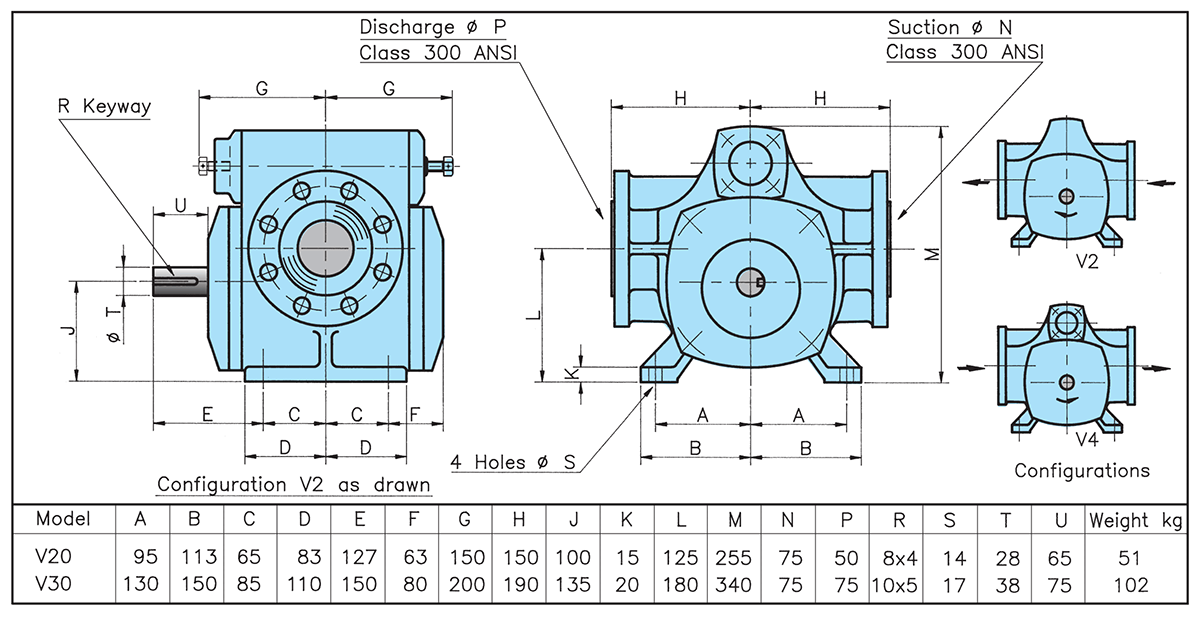

| PORTING | |
|---|---|
| Inlet | DN 80 (3″) SQ Flange or DN 80 (3″) ANSI CL 300 Flange |
| Discharge | DN 80 (3″) SQ Flange or DN 80 (3″) ANSI CL 300 Flange |
